AD2C-PRO Diaphragm Vacuum Pump

LAB EVAPORATION SYSTEM

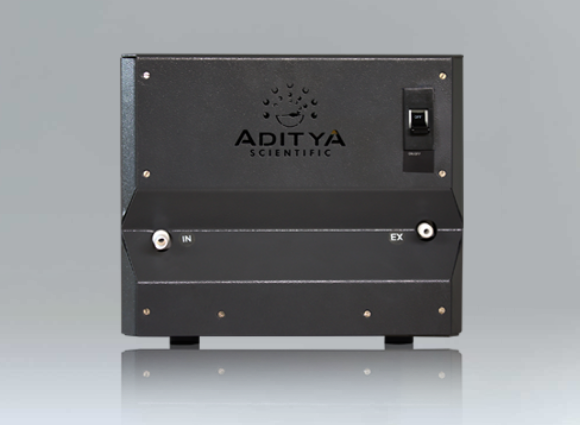

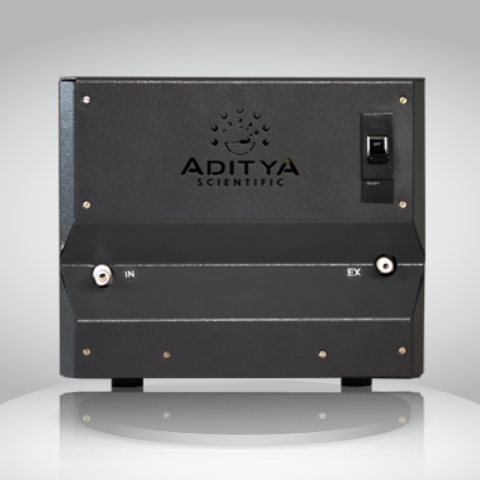

AD2C-PRO Diaphragm Vacuum Pump

The AD2C-PRO Diaphragm Vacuum Pump by AP Lab Solution is the ideal solution for continuous and oil-free pumping of corrosive gases and vapors. Designed with advanced vacuum technology and a brushless DC motor, it ensures an efficient and worry-free evaporation process.

This diaphragm vacuum pump features a two-stage construction, providing a winning combination of high pumping speed and low ultimate vacuum. It is ideal for a variety of applications, including:

  • Laboratory evaporation
  • Chemical synthesis
  • Material testing
  • Vacuum coating
  • Food and beverage processing

The AD2C-PRO Diaphragm Vacuum Pump is made with durable materials resistant to aggressive solvents and acidic vapors, making it an environmentally friendly option suitable for various settings.

Features

  • Outstanding chemical resistance and superior vapor tolerance
  • High performance even at low vacuum levels
  • Ease of operation
  • Whisper quiet and low vibration
  • Long diaphragm life
  • Maintenance-free drive system

If you are looking for a reliable and efficient diaphragm vacuum pump for corrosive gases and vapors, the AD2C-PRO from AP Lab Solution is the perfect choice.

Technical Specifications

TECHNICAL DATA UNIT AD 2C
Number of heads / stages ----- 2
Max. pumping speed at 50 Hz m3/h 2.0
Ultimate vacuum mbar/torr 9 / 7
Ambient temperature range °C 10 - 40
Max. back pressure (EX) (abs.) bar 1.1
Inlet connection mm 10
Outlet connection mm 10
Type of motor --- BLDC
Rated motor power watts DC 240
Dimensions (W x L x H) mm 280 x 217 x 240
Weight kg 15
Noise level dBA 45
CE mark ---- Yes
Items supplied ---- Ready for use
ATEX (internal) ---- II 2G Ex h IIC T3 Gb
Integrated Digital Vacuum Controller ---- NA
Integrated Inlet Trap & Exhaust Condenser ---- NA
