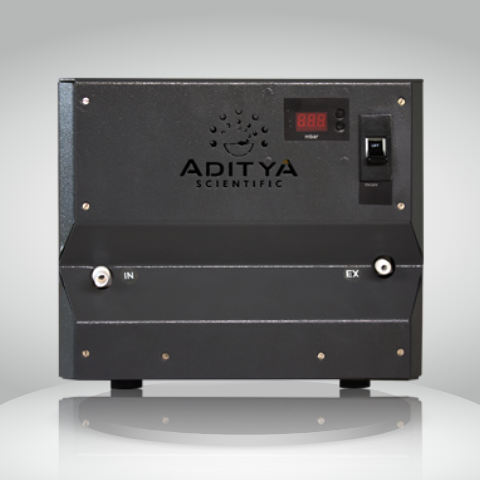

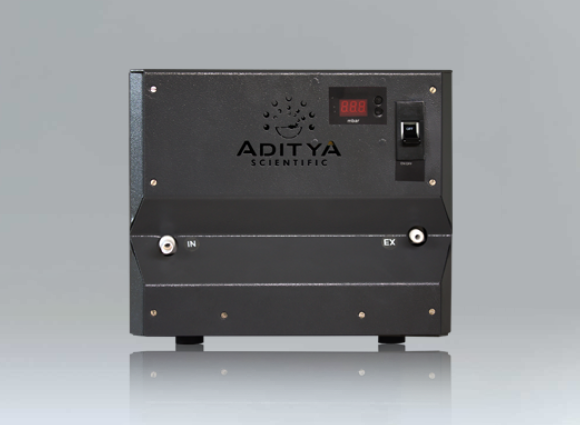

The AD2C-PRO-VC Diaphragm Vacuum Pump by AP Lab Solution comes with a digital vacuum controller and is the perfect solution for your corrosive gas and vapor needs. Designed with advanced vacuum technology and a brushless DC motor, it ensures an efficient and worry-free evaporation process.
This diaphragm vacuum pump features a two-stage construction, providing a winning combination of high pumping speed and low ultimate vacuum. It is ideal for a variety of applications, including:
The AD2C-PRO Diaphragm Vacuum Pump is made with durable materials resistant to aggressive solvents and acidic vapors, making it an environmentally friendly option suitable for various settings.
If you are looking for a reliable, efficient, and easy-to-use diaphragm vacuum pump for corrosive gases and vapors, the AD2C-PRO-VC from AP Lab Solution is the perfect choice for you.
TECHNICAL DATA | UNIT | AD 2C |
Number of heads / stages | ----- | 2 |
Max. pumping speed at 50 Hz | m3/h | 2.0 |
Ultimate vacuum | mbar/torr | 9 / 7 |
Ambient temperature range | °C | 10 - 40 |
Max. back pressure (EX) (abs.) | bar | 1.1 |
Inlet connection | mm | 10 |
Outlet connection | mm | 10 |
Type of motor | --- | BLDC |
Rated motor power | watts DC | 240 |
Dimensions (W x L x H) | mm | 280 x 217 x 240 |
Weight | kg | 15 |
Noise level | dBA | 45 |
CE mark | ---- | Yes |
Items supplied | ---- | Ready for use |
ATEX (internal) | ---- | II 2G Ex h IIC T3 Gb |
Integrated Digital Vacuum Controller | ---- | Yes |
Integrated Inlet Trap & Exhaust Condenser | ---- | NA |
