AD2C PRO VCE Diaphragm Vacuum Pump

LAB EVAPORATION SYSTEM

AD2C PRO VCE Diaphragm Vacuum Pump

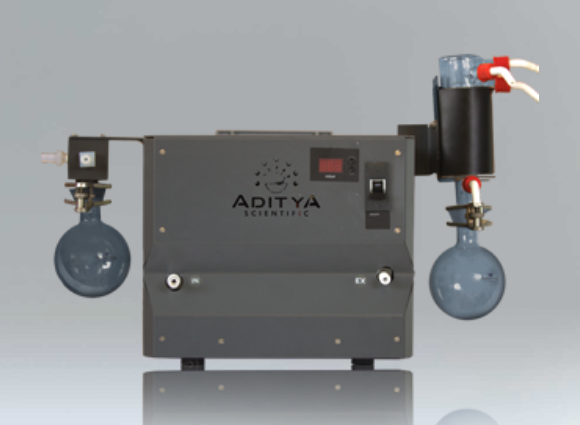

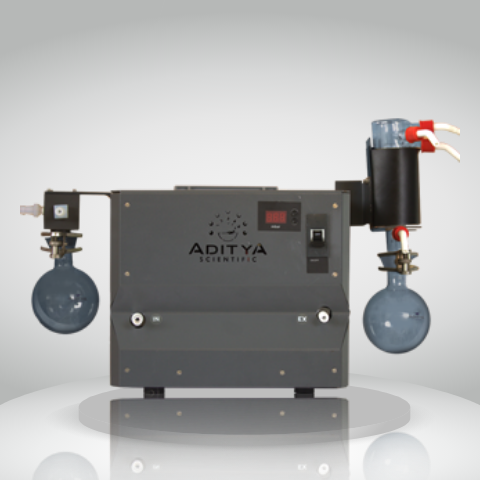

The AD2C-PRO-VCE Diaphragm Vacuum Pump by AP Lab Solution comes with a digital vacuum controller, inlet trap, and exhaust condenser. Designed with precision and powered by a brushless DC motor, this pump guarantees an efficient and hassle-free evaporation process by providing meticulous control over vacuum parameters.

Our diaphragm pumps, tailored for chemistry applications, are your ultimate solution for continuous and oil-free pumping of corrosive gases and vapors. What sets them apart is their remarkable resistance to aggressive solvents and acidic vapors, making them not just efficient, but also environmentally conscious. The ingenious two-stage construction strikes the perfect balance between rapid pumping speed and achieving a low ultimate vacuum.

The PRO Series Diaphragm Vacuum Pump enhances the effectiveness and reproducibility of your vacuum processes. Its unique pressure reduction capability allows near-automatic distillation of gas mixtures, eliminating the need for fractionated operation. Serving as our flagship chemistry diaphragm pump, it remains a favored choice at the core of AP Lab Solution's pumping systems. This new indigenous pump outshines its predecessors with improved performance data and superior vapor tolerance, solidifying its position as the prime option.

Features

  • Outstanding chemical resistance and superior vapor tolerance : Built to withstand even the most aggressive chemicals and vapors, ensuring long-lasting performance.
  • High performance even at low vacuum levels : Experience consistent high performance, even when operating at low vacuum levels.
  • Ease of operation : Designed for user-friendliness, simplifying the processes for seamless operation.
  • Whisper quiet and low vibration : Operates quietly and with minimal vibration, creating a conducive work environment.
  • Long diaphragm life : With robust materials and smart engineering, the pump boasts an extended diaphragm lifespan, reducing maintenance needs.
  • Maintenance-free drive system : Enjoy peace of mind with a drive system that requires minimal maintenance, saving you time and effort.

Incorporate the AD2C-PRO-VCE Diaphragm Vacuum Pump by AP Lab Solution into your operations, and witness elevated efficiency, reliability, and precision. Whether you're engaged in research, chemical processing, or any vacuum-dependent applications, this pump is the answer to your needs.

Technical Specifications

TECHNICAL DATA UNIT AD 2C
Number of heads / stages ----- 2
Max. pumping speed at 50 Hz m3/h 2.0
Ultimate vacuum mbar/torr 9 / 7
Ambient temperature range °C 10 - 40
Max. back pressure (EX) (abs.) bar 1.1
Inlet connection mm 10
Outlet connection mm 10
Type of motor --- BLDC
Rated motor power watts DC 240
Dimensions (W x L x H) mm 280 x 217 x 240
Weight kg 15
Noise level dBA 45
CE mark ---- Yes
Items supplied ---- Ready for use
ATEX (internal) ---- II 2G Ex h IIC T3 Gb
Integrated Digital Vacuum Controller ---- Yes
Integrated Inlet Trap & Exhaust Condenser ---- Yes
