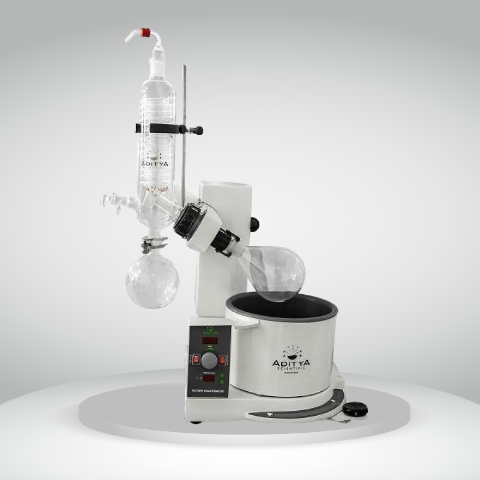

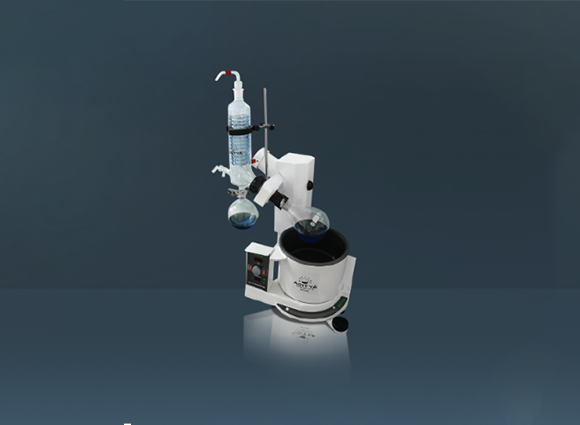

The RE-2A rotary evaporator is the perfect solution for efficient laboratory evaporation processes. It serves as an excellent tool for standard distillation as well as complex distilling procedures, and even offers automatic distillation capabilities.
The development of this rotary evaporator has placed significant emphasis on crucial aspects such as safety, convenience, and cost savings. With its automatic lift functionality and enhanced power, the RE-2A rotary evaporator elevates your evaporation experience to new heights.
Description | RE2A |
Lift Type | Automatic |
Condenser Type | Vertical/Horizontal |
Rotation Speed (RPM) | 20-320 |
Vapour Tube | Single piece with Sleeve for Easy Removal |
Integrated Combi-Clip | Yes |
Suitable flask size (ml) | 50-5000 ml |
Rotation speed setting | LED Display |
Rotation Driver | Electronic Speed Control |
Motor Power (W) | 60 |
Heating Capacity (W) | 1300 |
Total Power (W) | 1360 |
Temperature Range (oC) | 20 – 210 |
Temperature Accuracy (oC) | 1 |
Overheat Protection | Safety cutoff over +5 (oC) |
Temperature Setting | Digital LED |
Temperature Control | Electronic PID Control |
Secondary Protection Cutoff | 250oC |
Material Heating Bath | Ceramic Coated / SS316L |
Volume Heating bath (L) | 4.5L - Dia 255mm Suitable 50- 5000ml |
Bath Position | Flexible to extend to suit flask size |
Sealing ring | Graphite filled PTFE |
Power Supply | 230 VAC, 50Hz |
